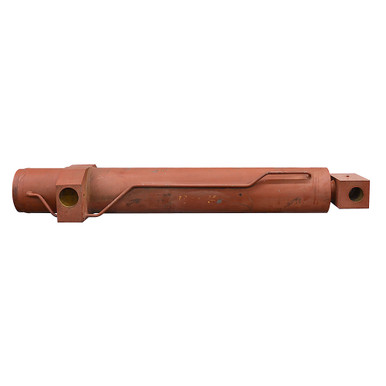

6.5" x 41" x 2.75" Double Acting Hydraulic Cylinder

6.5″ x 41″ x 2.75″ Double Acting Hydraulic Cylinder

Original price was: $399.95.Current price is: $79.99.

SKU: 904601 Category:

Description

6.5″ x 41″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1X00014201-2-1-11 5421-222-1M Z64041044TLBZ.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″ x 41″
  • Barrel Thickness 0.505″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports 4 bolt flange with 1/4″-20 drilled and tapped holes on 2.45″ x 2.72″ centers and 0.315″ port holes
  • Retracted Length 44.25″
  • Gland Face to Rod Pin Center 3.5″
  • Shpg. 432 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 9.25″
  • Pin-Center-To-Tang-End 2.13″
  • Pin Hole 2-3/8″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 13.375″ / 8″
  • Pin-Center-To-Rod Pin Center 44.25″
  • Pin Center To Base End 10″
  • Pin Diameter 3″
