Description

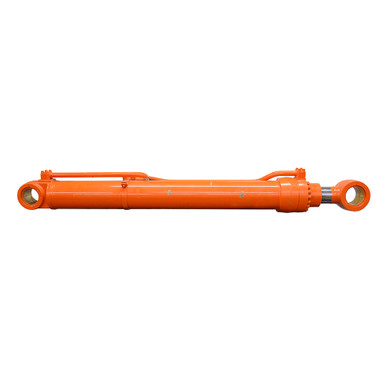

6.482″(165mm) x 57.484″(1460mm) x 4.524″(115mm) HYDRAULIC CYLINDER
Unused old inventory. DAEWOO , welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.482″(165mm) x 57.484″(1460mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.524″(115mm)
- Rod Thickness 4.524″(115mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 84.375″
- Gland Face to Rod Pin Center 8.875″
- Shpg. 855 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 5.787″
- Pin-Center-To-Tang-End 4.092″
- Pin Hole 4.731″(120mm)
|
- Base End Tang
- Width 5.761″
- Pin-Center-To-Tang-End 3.773″
- Pin Hole 4.335″(110mm)
|
