Description

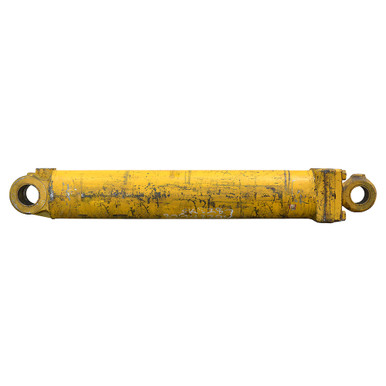

6.318″(160mm) x 36.438″(925mm) x 3.152″(80mm) DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 0774 952 802.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.318″(160mm) x 36.438″(925mm)
- Barrel Thickness 7.526″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. 3.15″(80mm)
|
- Ports Four bolt flange with M10-1.5 holes on 3.5″ long x 1.375″ wide and 0.988″ port hole
- Retracted Length 50.50″
- Shpg. 421 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Thickness, Max 3.14″
- Pin-Center-To-Tang-End 2.969″
- Pin Hole 2.76″(70mm)
|
- Base End Tang
- Thickness, Max 5.504″
- Pin-Center-To-Tang-End 3.114″
- Pin Hole 3.15″(80mm)
|
