6.299" (160mm) x 59" x 4.134" (105mm) Double Acting Hydraulic Cylinder H6A0145R

6.299″ (160mm) x 59″ x 4.134″ (105mm) Double Acting Hydraulic Cylinder H6A0145R

Original price was: $1,249.95.Current price is: $249.99.

SKU: 904021 Category:

Description

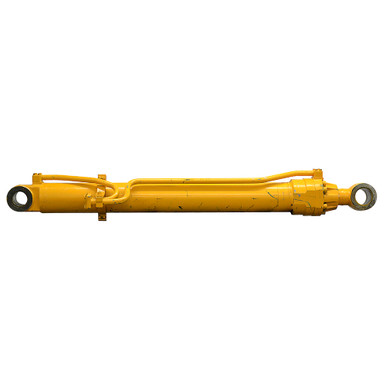

6.299″ (160mm) x 59″ x 4.134″ (105mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “H6A0145R” stamped into cylinder barrel.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 160mm (6.299″) x 59″
  • Barrel Thickness 14mm (0.551″)
  • Pressure 3000 PSI max.
  • Rod Dia. 105mm (4.134″)
  • Ports 1″ Four-Bolt Flange, Code 62
  • Retracted Length 83-1/2″
  • Shpg. 820 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 5-1/8″
  • Pin Center to Tang End 3-1/2″
  • Pin Hole 105mm (4.134″)
  • Base End Tang
  • Max Thickness 5-1/2″
  • Pin Center to Tang End 3-1/4″
  • Pin Hole 90mm (3.543″)
