Description

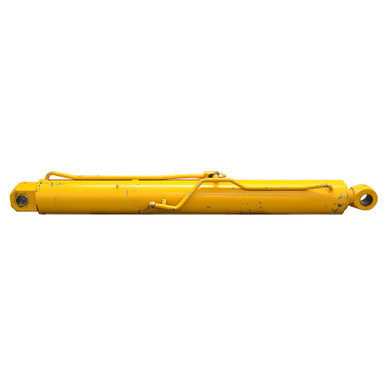

6.29″(160mm) x 55″(1397mm) x 3.54″(90mm) DA HYD CYL
Unused old inventory. JCB double acting hydraulic cylinder. Cylinder fittings are for PARKER 92, B1, B2, B4 style hoses. Cylinder has adjustable SUN cartridge valve with number CBDL LJN. Numbers on cylinder 572-60031.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke6.29″(160mm) x 55″(1397mm)
- Barrel Thickness 0.617″
- Gland Retainer Threaded in
- Pressure3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports BSPP 5/8-14 w/ 60° cone/ 30° seat
- Retracted Length71.75″
- Gland Face to Rod Pin Center 4″
- Shpg. 583 lbs.
|
| END MOUNTINGS |
|
- Base End Tang
- Width 4″
- Pin-Center-To-Tang-End 2.75″
- Pin Hole 2-1/2″
|
- Base End Tang
- Width 5.5″
- Pin-Center-To-Tang-End 2.625″
- Pin Diameter 2-1/2″
|
