Description

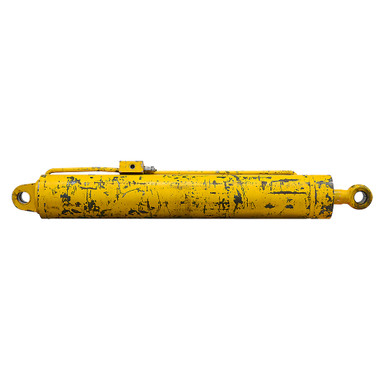

6.29″(160mm) x 39.31″(998mm) x 2.56″(65mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 90370. Cylinder has a cartridge valve marked STERLING E28-60-ZN-KA.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.29″(160mm) x 39.31″(998mm)
- Barrel Thickness 0.587″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 2.56″(65mm)
|
- Ports Three BSPP 1/2″-14 TPI and One BSPP 1/4″-19 TPI
- Retracted Length 56.5″
- Gland Face to Rod Pin Center 5″
- Shpg. 385 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 2.72″
- Pin-Center-To-Tang-End 2.17″
- Pin Hole 1.97″(50mm)
|
- Base End Tang
- Width 2.77″
- Pin-Center-To-Tang-End 2.03″
- Pin Hole 1.97″(50mm)
|
