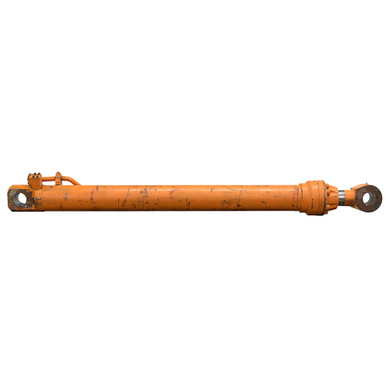

6.29" (160mm) x 71"(1803.4mm) x 4.73"(120mm) Double Acting Hydraulic Cylinder H0752210UA

6.29″ (160mm) x 71″(1803.4mm) x 4.73″(120mm) Double Acting Hydraulic Cylinder H0752210UA

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904457 Category:

Description

6.29″(160mm) x 71″(1803.4mm) x 4.73″(120mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder H0752210UA.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 6.29″(160mm) x 71″(1803.4mm)
  • Barrel Thickness 0.633″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.73″(120mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 100″
  • Gland Face to Rod Pin Center 9″
  • Shpg. 1104 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 5.125″
  • Pin-Center-To-Tang-End 4.05″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Thickness, Max 5.13″
  • Pin-Center-To-Tang-End 3.56″
  • Pin Hole 3.55″(90mm)
