6.25"(159mm) x 71.25"(1810mm) x 4.7"(120mm) Double Acting Hydraulic Cylinder O & K Orenstein & KE 2244763

6.25″(159mm) x 71.25″(1810mm) x 4.7″(120mm) Double Acting Hydraulic Cylinder O & K Orenstein & KE 2244763

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904629 Category:

Description

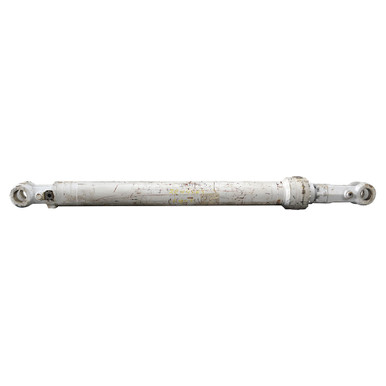

6.25″(159mm) x 71.25″(1810mm) x 4.7″(120mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. O & K Orenstein & KE numbers on cylinder 2244763.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.25″(159mm) x 71.25″(1810mm)
  • Barrel Thickness 0.870″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.695″(120mm)
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 110.75″
  • Gland Face to Rod Pin Center 17.25″
  • Shpg. 1293 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 9.75″
  • Inside Width 4.115″
  • Throat Depth 14.125″
  • Pin Hole 3.94“(100mm)
  • Base End Clevis
  • Outside Width 10″
  • Inside Width 4.3″
  • Throat Depth 11″
  • Pin Hole 3.94“(100mm)
  • Auxillary Mount Male Trunnion
  • Pin Outside/Inside Width 12″ / 10″
  • Pin-Center-To-Rod Pin Center 105″
  • Pin Center To Base End 10″
  • Pin Diameter 1.93″(50mm)
