Sale!

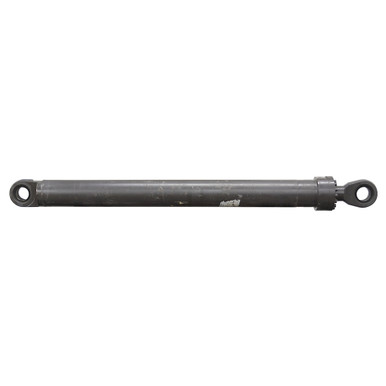

6.25"(159mm) x 63"(1600mm) x 4.12"(105mm) Double Acting Hydraulic Cylinder Volvo 29483202

6.25″(159mm) x 63″(1600mm) x 4.12″(105mm) Double Acting Hydraulic Cylinder Volvo 29483202

Original price was: $1,049.95.Current price is: $209.99.

SKU: 904649 Category:

Description

6.25″(159mm) x 63″(1600mm) x 4.12″(105mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. VOLVO numbers on cylinder 29483202 0921614257166-0.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.25″(159mm) x 63″(1600mm)
  • Barrel Thickness 0.515″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 4.12″(105mm)
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length89.75″
  • Gland Face to Rod Pin Center7.75″
  • Shpg. 746 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.89″
  • Pin-Center-To-Swivel Eye-End 3.6″
  • Swivel Eye Width 2.375″
  • Pin Hole 3.54″(90mm)
  • Base End Swivel Eye
  • Width 2.92″
  • Pin-Center-To-Swivel Eye-End 3.6″
  • Swivel Eye Width 2.375″
  • Pin Hole 3.54″(90mm)
