6.25" x 36.75" x 2.75" Double Acting Hydraulic Cylinder 4171020

6.25″ x 36.75″ x 2.75″ Double Acting Hydraulic Cylinder 4171020

Original price was: $849.95.Current price is: $169.99.

SKU: 904496 Category:

Description

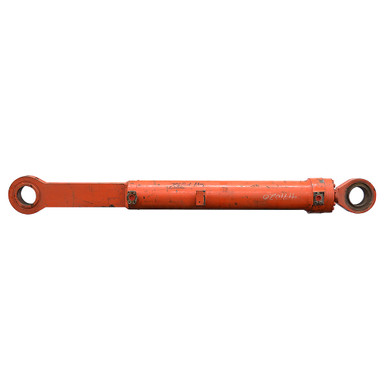

6.25″ x 36.75″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 4171020.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.25″ x 36.75″
  • Barrel Thickness 0.464″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.75″
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 81.25″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 513 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.95″
  • Pin-Center-To-Tang-End 4.48″
  • Pin Hole 4-3/4″
  • Base End Tang
  • Thickness, Max 2.19″
  • Pin-Center-To-Tang-End 4.69″
  • Pin Hole 4-3/4″
