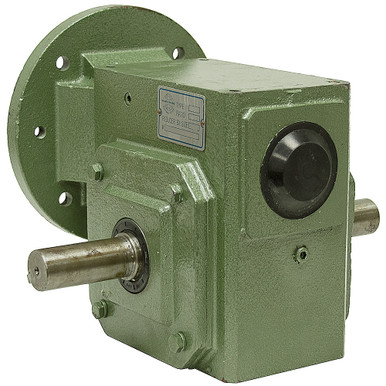

5:1 Right Angle Cast Iron Worm Gear Reducer 9.1 HP 184TC Dual Output Worldwide R325-5:1-184TC-9.1DE

Description

5:1 GEAR REDUCER
New, WORLDWIDE ELECTRIC cast iron right-angle worm gear-reducer. Dual output shaft.Tapped mounting holes on top and bottom of case.Mounting base supplied.

SPECIFICATIONS

• 5:1 gear ratio
• 9.1 HP input
• 1750 RPM input
• 350 RPM output
• 1517 in-lbs output torque
• 3.50″ Output centerline height
• Motor mount: 184TC
• 1-1/8″ dia. keyed hollow input
• 1-3/8″ diam. x 3-1/4″ keyed dual output shaft
• 4″x 7.50″ mgt bolt pattern
• Overall size 11-1/2″ x 9″ x 11-1/4″
• Shpg 93 lbs
