Description

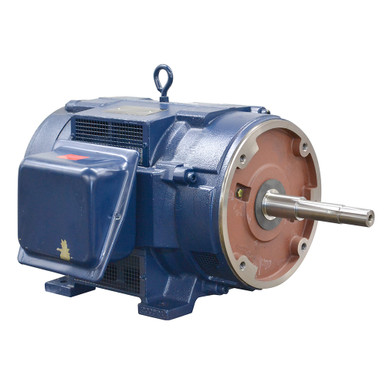

50 HP 3550 RPM 200 VOLT AC 3 PHASE MARATHON MOTOR
New, Marathon pump motor model FVJ324TTDP17015AAL.
SPECIFICATIONS
- Brand Marathon
- Model Number FVJ324TTDP17015AAL
- Power 50 HP
- Voltage 200 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 143 Amps
- Speed 3550 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Enclosure ODP
- Duty Continuous
- Frame 324JP
- Base Mount Four 0.66″ dia. holes on 12-1/2″ x 10-1/2″ centers
- Face Mount Four 5/8″-11 tapped holes on 11″ dia. bolt circle
- Shaft 1-38″ dia. x 3-1/2″ stepped down to 1-1/4″ dia. x 2-1/4″ w/ 1-4″ keyway
- Size 29.375″ x 19.75″ x 15″
- Shpg. 422 lbs.
