Description

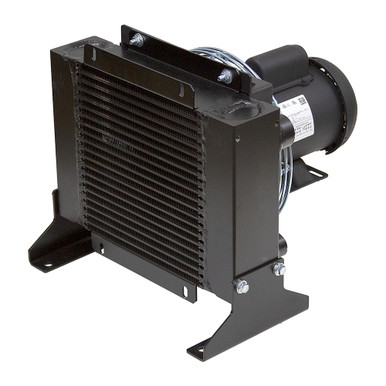

50 GPM AKG AR15-1 Oil Cooler w/ 115/230 Volt AC Fan
Brand NEW AKG AR series oil cooler that features aluminum construction, 115/230 Volt AC 1 phase fan, leak-free SAE O-Ring connections, zinc plated steel fan guard and powder painted steel mounting brackets.
SPECIFICATIONS
- Manufacturer AKG
- Model Number AR15-1
- Pressure 377 PSI max.
- Temperature 250 F° max.
- Construction Aluminum cooler and steel shroud/mounting brackets
- Flow 50 GPM
- Fan Motor HP 1/2
- Phase 1
- Fan Motor Voltage 115/230
- Amps 7/3.5
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 31725 - Airflow Direction Pull
- Port Size SAE 16
- Mount Four 1/2″ bolt holes on 7.09″ x 14.65″ centers
- Overall Depth (in.) 16
- Overall Width (in.) 16.54
- Overall Height (in.) 15.91
- Shpg. 62 lbs.
