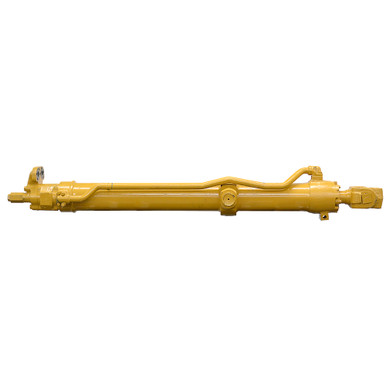

5″ x 43″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Double swivel link on rod end. Model 73116737
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 43″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in gland with bolt on wiper
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports 4 bolt 1″ Code 61 Flange Size 16
- Retracted Length 42-3/4
- Pin-Center-To-Rod Pin 28″
- Shpg. 334 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Tube
- O.D. 3″
- Width 3.88″
|
- Base End Male Trunnion
- Pin Outside/Inside Width 11″ / 8″
- Pin-Center-To-Rod Pin Center 28″
- Pin Center To Base End 42-3/4″
- Pin Diamter 2-1/2″
|
