Description

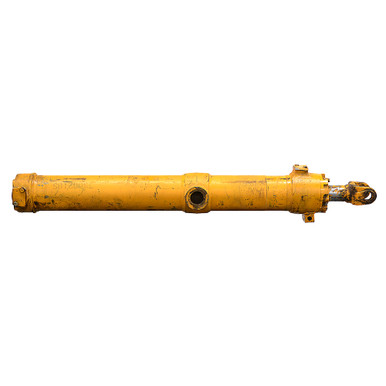

5″ x 37″ x 2.5″ DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder is missing manifold block on base end needed to function. Numbers on cylinder 73062185
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5″ x 37″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in gland w/ bolt on wiper
- Pressure3000 PSI max.
- Rod Dia. 2.5″
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length26″ (trunnion)
- Shpg. 236 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 4.90″
- Inside Width 3.15″
- Throat Depth 2.81″
- Pin Hole 1-1/4″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 8″ /5.5″
- Pin-Center-To-Rod Pin Center 26″
- Pin Center To Base End 28″
- Pin Hole2″
|
