Description

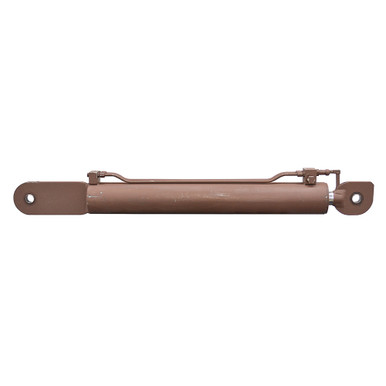

5″ x 35″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. Welded, double acting hydraulic cylinder, stamped A080190S 031709. Cylinder has closed plunger activated on rod end with adjustable stop, cartridge not included.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 35″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5″
|
- Work Ports SAE 6
- Cartridge Ports SAE 12
- Retracted Length 58.5″
- Gland Face to Rod Pin Center 5.25″
- Shpg. 237 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 1.159″
- Pin-Center-To-Swivel Eye-End 2.991″
- Swivel Eye Width 1.317″
- Pin Hole 1.5″
|
- Base End Swivel Eye
- Width 1.170″
- Pin-Center-To-Swivel Eye-End 3.038″
- Swivel Eye Width 1.317″
- Pin Hole 1.5″
|
