Description

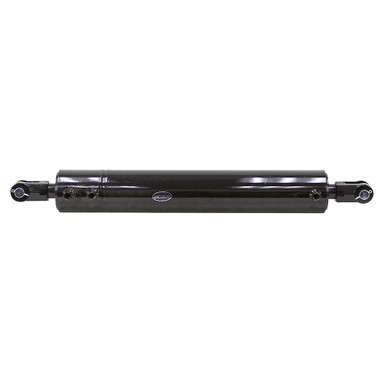

5″x24″x2″/5″x1.61″x2″ DOUBLE ACTING HYDRAUILC CYLINDER
New. Double piston/rod double acting hydraulic cylinder. Two pistons with separate strokes and ports. Monarch model 647969
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5″ x 24″, 5″ x 1.61″
- Barrel Thickness 0.25″
- Gland Retainer Four hole gland
- Pressure 2400 PSI max.
- Rod Dia. 2″
|
- Ports SAE 8
- Retracted Length 44.11″
- Shpg. 133 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 2.95″
- Inside Width 1.23″
- Throat Depth 2.18″
- Pin Hole 1-1/4″
|
- Rod End Clevis
- Outside Width 2.97″
- Inside Width 1.23″
- Throat Depth 2.10″
- Pin Hole 1-1/4″
|
