Description

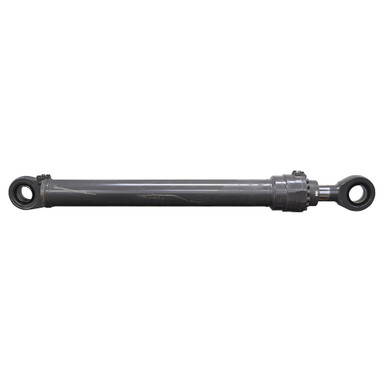

5.913″(150mm) x 53.543″(1360mm) x 4.135″(105mm) HYDRAULIC CYLINDER
Unused old inventory. VOLVO 14344618-02, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.913″(150mm) x 53.543″(1360mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.135″(105mm)
- Rod Thickness 4.135″(105mm)
|
- Extends Port CODE 62 FLANGE 20
- Retract Port CODE 62 FLANGE 16
- Retracted Length 82.75″
- Gland Face to Rod Pin Center 10.375″
- Shpg. 817 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 3.005″
- Pin-Center-To-Swivel Eye-End 4.482″
- Swivel Eye Width 2.748″
- Pin Hole 4.332″(110mm)
|
- Base End Swivel Eye
- Width 3.004″
- Pin-Center-To-Swivel Eye-End 4.370″
- Swivel Eye Width 2.749″
- Pin Hole 3.939″(100mm)
|
