Description

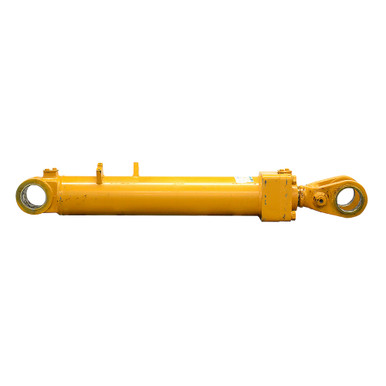

5.906″ (150mm) x 30.75″ x 3.543″ (90mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, SAMSUNG model 2046-00421 R.H. welded cylinder with bolt-on gland cap.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 150mm (5.906″) x 30-3/4″
- Barrel Thickness 10mm (0.394″)
- Pressure 3000 PSI max.
- Rod Dia. 90mm (3.543″)
|
- Ports 1″ Four-Bolt Flange, Code 61
- Retracted Length 52-1/4″
- Shpg. 410 lbs.
|
| END MOUNTINGS |
- Rod End Clevis
- Outside Width 7-1/4″
- Inside Width 4-1/16″
- Throat Depth 7-7/16″
- Pin Hole 100mm (3.937″)
|
- Base End Tang
- Max Thickness 4-11/16″
- Pin Center to Tang End 3-5/16″
- Pin Hole 100mm (3.937″)
|
