Description

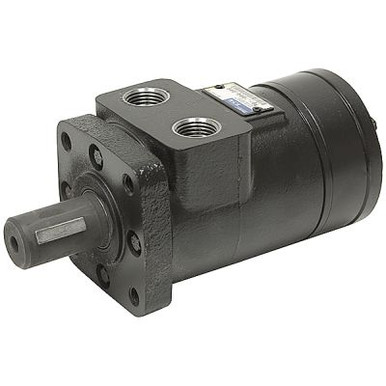

5.9 cu in CHAR-LYNN 101-1003 HYD MOTOR
Brand new CHAR-LYNN H series motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.
SPECIFICATIONS
- Disp. 5.9 cu. in. / rev.
- Motor Type Gerotor
- Pressure:
1800 PSI cont. 2400 PSI int. - Torque:
1368 in-lbs. cont. 1829 in-lbs. int. - Speed:
585 RPM cont. 701 RPM int. - Flow:
15 GPM cont. 18 GPM int. - Rotation Reversible
- Mount 4 bolt 3.25″ B.C.
- Shaft 1″ dia. x 1-3/4″ keyed
- Ports 1/2″ NPT
- Case Drain N/A
- Size 5.5″ x 3.31″ x 3.31″
- Shpg. 14 lbs.
