5.89"(150mm) x 68.5"(1740mm) x 4.12"(105mm) Double Acting Hydraulic Cylinder Hyundai 31E2-50230

5.89″(150mm) x 68.5″(1740mm) x 4.12″(105mm) Double Acting Hydraulic Cylinder Hyundai 31E2-50230

Original price was: $1,049.95.Current price is: $209.99.

SKU: 904659 Category:

Description

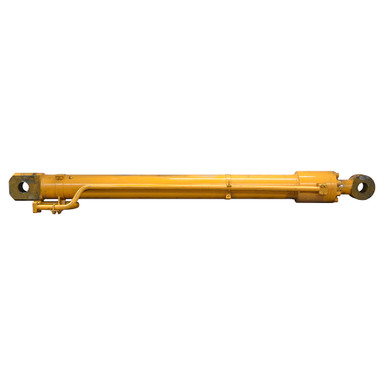

5.89″(150mm) x 68.5″(1740mm) x 4.12″(105mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. HYUNDAI numbers on cylinder 31E2-50230.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.89″(150mm) x 68.5″(1740mm)
  • Barrel Thickness 0.458″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.12″(105mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 94.25″
  • Gland Face to Rod Pin Center 7″
  • Shpg. 840 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.15″
  • Pin-Center-To-Tang-End 3.53″
  • Pin Hole 2.96″(75mm)
  • Base End Tang
  • Width 4.15″
  • Pin-Center-To-Tang-End 4″
  • Pin Hole 2.96″(75mm)
