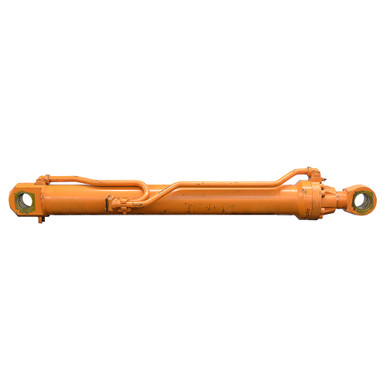

5.88"(150mm) x 52.75"(1339.9mm) x 3.94"(100mm) Double Acting Hydraulic Cylinder H0752208UA

5.88″(150mm) x 52.75″(1339.9mm) x 3.94″(100mm) Double Acting Hydraulic Cylinder H0752208UA

Original price was: $449.95.Current price is: $89.99.

SKU: 904461 Category:

Description

5.88″(150mm) x 52.75″(1339.9mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder H0752208UA.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.88″(150mm) x 52.75″(1339.9mm)
  • Barrel Thickness 0.522″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.94″(100mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 76″
  • Gland Face to Rod Pin Center 6″
  • Shpg. 675 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 4.72″
  • Pin-Center-To-Tang-End 3.51″
  • Pin Hole 3.55″(90mm)
  • Base End Tang
  • Thickness, Max 4.72″
  • Pin-Center-To-Tang-End 3.54″
  • Pin Hole 3.55″(90mm)
