Sale!

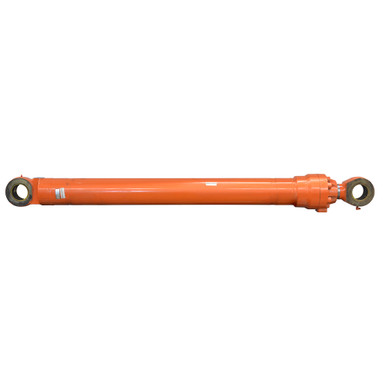

5.69"(145mm) x 60.25"(1530mm) x 3.93"(100mm) Double Acting Hydraulic Cylinder Hitachi 993411 9076766 1-9076766EX 021030DY5

5.69″(145mm) x 60.25″(1530mm) x 3.93″(100mm) Double Acting Hydraulic Cylinder Hitachi 993411 9076766 1-9076766EX 021030DY5

Original price was: $949.95.Current price is: $189.99.

SKU: 904665 Category:

Description

5.69″(145mm) x 60.25″(1530mm) x 3.93″(100mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. HITACHI numbers on cylinder 993411 9076766 1-9076766EX 021030DY5.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.69″(145mm) x 60.25″(1530mm)
  • Barrel Thickness 0.528″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 3.93″(100mm)
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length84″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 740 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.93″
  • Pin-Center-To-Tang-End 3.62″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 3.91″
  • Pin-Center-To-Tang-End 3.68″
  • Pin Hole 3.94″(100mm)
