Description

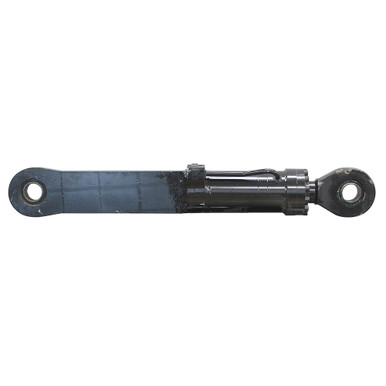

5.5″(140mm) x 6.75″(171mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has cartridge valve with numbers 3033013 18-07 FLUTEC. FUCHS HYDRAULICS numbers on cylinder 6501462000.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″(140mm) x 6.75″(171mm)
- Barrel Thickness 0.602″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports 4 bolt 1/2″ code 62 flange size 8
- Retracted Length 50″
- Gland Face to Rod Pin Center 6.75″
- Shpg. 386 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Width 2.58″
- Pin-Center-To-Swivel Eye-End 3.89″
- Swivel Eye Width 2.75″
- Pin Hole 2.76″(70mm)
|
- Base End Swivel Eye
- Width 2.62″
- Pin-Center-To-Swivel Eye-End 3.94″
- Swivel Eye Width 2.75″
- Pin Hole 2.76″(70mm)
|
