Name: 5.512"(140mm) x 57.625" x 3.937"(100mm) Double Acting Hydraulic Cylinder Hyundai 3159-0006 233 1X95
Brand: toolingsupplyoutlet.com
SKU: 904034
Price: 234.99 USD
Availability: InStock

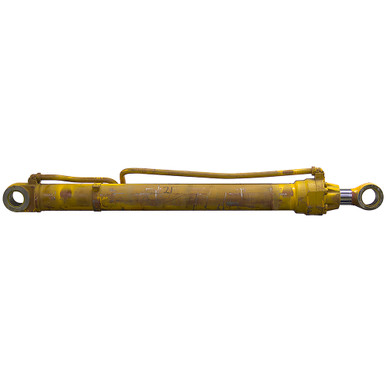

5.512″(140mm) x 57.625″ x 3.937″(100mm) Double Acting Hydraulic Cylinder Hyundai 3159-0006 233 1X95

SKU: 904034 Category: hot sale

Description

5.512″ (140mm) x 57.625″ x 3.937″ (100mm) DA HYDRAULIC CYLINDER
New, HYUNDAI model 3159-0006 233 1X95 welded cylinder with bolt-on gland cap. Port flanges have M10 bolts.

SPECIFICATIONS
Double Acting Bore x Stroke140mm (5.512″) x 57-5/8″ (1463.7mm) Barrel Thickness11mm (0.433″) Pressure 3000 PSI max. Rod Dia. 100mm (3.937″)	Ports1″ Four-Bolt Flange, Code 61 Retracted Length 81-3/4″ Shpg. 655 lbs.

END MOUNTINGS
Rod End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-1/4″ Pin Hole 100mm (3.937″)	Base End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-5/16″ Pin Hole 90mm (3.543″)
