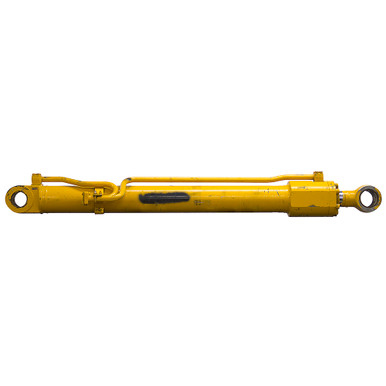

Name: 5.512" (140mm ) x 57.6875" (1465mm) x 3.937" (100mm) Double Acting Hydraulic Cylinder H52010L
Brand: toolingsupplyoutlet.com
SKU: 904013
Price: 245.99 USD
Availability: InStock

5.512″ (140mm ) x 57.6875″ (1465mm) x 3.937″ (100mm) Double Acting Hydraulic Cylinder H52010L

SKU: 904013 Category: hot sale

Description

5.512″ (140mm) x 57.6875″ (1465mm) x 3.937″ (100mm) DA HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “H52010L” stamped into cylinder barrel.

SPECIFICATIONS
Double Acting Bore x Stroke 140mm (5.512″) x 1465mm (57.6875″) Barrel Thickness 12.5mm (0.492″) Pressure 3000 PSI max. Rod Dia. 100mm (3.937″)	Ports 1″ Four-Bolt Flange, Code 61 Retracted Length 82″ Shpg. 710 lbs.
END MOUNTINGS
Rod End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-5/16″ Pin Hole 100mm (3.937″)	Base End Tang Max Thickness 4-9/16″ Pin Center to Tang End 3-5/16″ Pin Hole 90mm (3.543″)
