Description

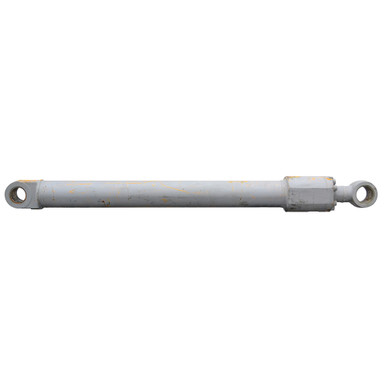

5.51″(140mm) x 57.68″(1465mm) x 3.93″(100mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder HN943025.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 57.68″(1465mm)
- Barrel Thickness 0.46″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.93″(100mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length81.75″
- Gland Face to Rod Pin Center 7″
- Shpg. 657 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 4.56″
- Pin-Center-To-Tang-End 3.39″
- Pin Hole 3.94″(100mm)
|
- Base End Tang
- Width 4.56″
- Pin-Center-To-Tang-End 3.37″
- Pin Hole 3.54″(90mm)
|
