5.51"(140mm) x 49.75"(1264mm) x 3.94"(100mm) Double Acting Hydraulic Cylinder Komatsu 206-63-0330

5.51″(140mm) x 49.75″(1264mm) x 3.94″(100mm) Double Acting Hydraulic Cylinder Komatsu 206-63-0330

Original price was: $549.95.Current price is: $109.99.

SKU: 904817 Category:

Description

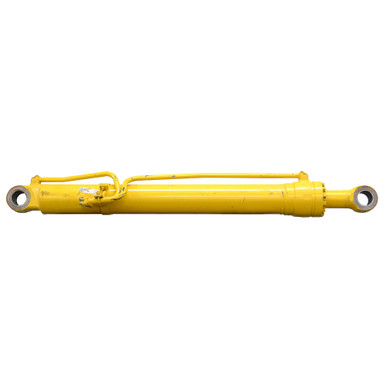

5.51″(140mm) x 49.75″(1264mm) x 3.94″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. KOMATSU double acting hydraulic cylinder. Numbers on cylinder 206-63-0330.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.51″(140mm) x 49.75″(1264mm)
  • Barrel Thickness 0.520″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.94″(100m)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 74.5″
  • Gland Face to Rod Pin Center 9.375″
  • Shpg. 573 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.76″
  • Pin-Center-To-Tang-End 2.95″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 3.76″
  • Pin-Center-To-Tang-End 2.95″
  • Pin Hole 3.15″(80mm)
