Description

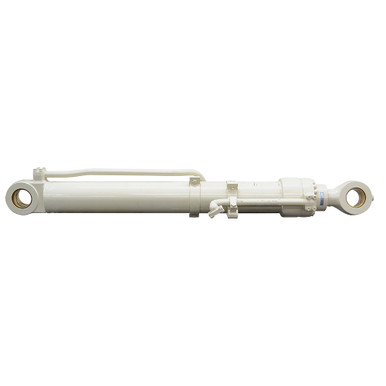

5.51″(140mm) x 45.26″(1150mm) x 3.54″(90mm) DA HYD CYL
Unused old inventory. DOOSAN double acting hydraulic cylinder. Numbers on cylinder 440-00561.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5.51″(140mm) x 45.26″(1150mm)
- Barrel Thickness 0.5″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length67.31″
- Gland Face to Rod Pin Center 5.875″
- Shpg. 643 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.87″
- Pin-Center-To-Tang-End 4.22″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 3.84″
- Pin-Center-To-Tang-End 3.55″
- Pin Hole 3.54″(90mm)
|
