Description

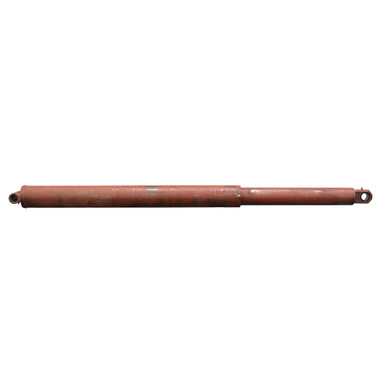

5.5″ x 49.5″ x 5″ DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 720505 A50727C5.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 49.5″
- Barrel Thickness 0.382″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI max.
- Rod Dia. Hollow, 5″
- Thickness 0.252″
|
- Extend Port SAE 12
- Retract Port SAE 8
- Retracted Length 98″
- Shpg. 311 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 2.48″
- Pin-Center-To-Swivel Eye-End 2.13″
- Swivel Eye Width 1.75″
- Pin Hole 2″
|
- Base End Cross-Tube
- O.D. 3″
- Width 7.75″
- Pin Hole 2″
|
