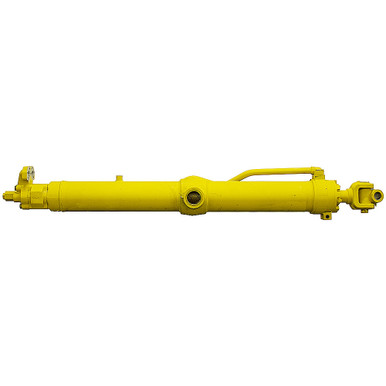

5.5" x 46.5" x 2.5" Double Acting Hydraulic Cylinder Fiat-Allis 73118802

5.5″ x 46.5″ x 2.5″ Double Acting Hydraulic Cylinder Fiat-Allis 73118802

Original price was: $569.95.Current price is: $113.99.

SKU: 902538 Category:

Description

5.5″ x 46.5″ x 2.5″ DOUBLE ACTING TRUNNION HYDRAULIC CYLINDER
New, Fiat-Allis model 73118802 welded cylinder with thread-in gland cap and bolt-on wiper. Cushion valves at end of extend and retract strokes. Needle valve allows adjustment of cushion on retract.

Removable crosstube assembly mounted to rod end clevis, pin holes offset 90°. Both clevis and crosstube have 1-1/2″ pin holes.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5-1/2″ x 46-1/2″
  • Barrel Thickness 1/4″
  • Pressure 3000 PSI max.
  • Rod Dia. 2-1/2″
  • Ports 1″ Four Bolt Flange, Code 61
  • Retracted Length 34-1/4″
  • Shpg. 375 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 5-1/4″
  • Inside Width 3-1/16″
  • Throat Depth 3-1/2″
  • Pin Hole 1-1/2″
  • Rod End Crosstube Assembly
  • Width 4″
  • O.D. 2-5/16″
  • Pin Hole 1-1/2″
  • Trunnion Female
  • Pin Outside Width 10-1/4″
  • Pin Inside Width 6″
  • Pin Center to Rod Pin Center 34-1/4″
  • Pin Center to Base End 38″
  • Pin Diameter 2-1/2″
