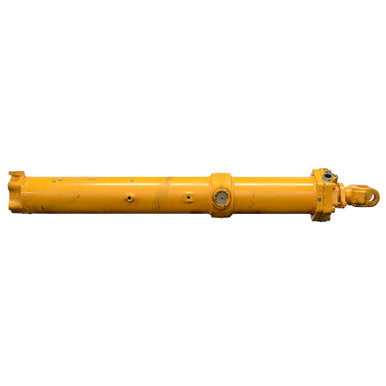

5.5" x 42.5" x 2.5" Double Acting Hydraulic Cylinder

5.5″ x 42.5″ x 2.5″ Double Acting Hydraulic Cylinder

Original price was: $499.95.Current price is: $99.99.

SKU: 904506 Category:

Description

5.5″ x 42.5″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 42.5″
  • Barrel Thickness 0.252″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Extend Port 3 bolt flange; Three 3/8″-16 drilled and tapped holes on 1.612″ x 1.612″ x 2.227″ centers with a  0.865″ port hole
  • Retract Port 3 bolt flange; Three 3/8″-16 drilled and tapped holes on 1.612″ x 1.612″ x 2.227″ centers with a 1.130″ port hole
  • Retracted Length 23.5″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 259 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 5.32″
  • Inside Width 3.08″
  • Throat Depth 3.16″
  • Pin Hole 1-1/2″
  • Base End Male
  • Pin Outside/Inside Width 11″ / 8″
  • Pin-Center-To-Rod Pin Center 23.5″
  • Pin Center To Base End 33.75″
  • Pin Diameter 2-1/2″
