Sale!
5.5" x 40" x 2.5" Double Acting Hydraulic Cylinder 70657668 3056785

5.5″ x 40″ x 2.5″ Double Acting Hydraulic Cylinder 70657668 3056785

Original price was: $499.95.Current price is: $99.99.

SKU: 904507 Category:

Description

5.5″ x 40″ x 2.5″ DA HYD CYL

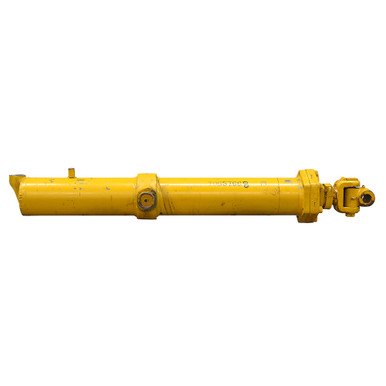

Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 70657668 3056785.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.5″ x 40″
  • Barrel Thickness 0.254″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 2.5″
  • Ports Three, 3/8″-16 drilled and tapped holes on 1.606″ x 1.606″ x 2.267″ centers with a 1.131″ port hole
  • Retracted Length 34.75″
  • Gland Face to Rod Pin Center5.5″
  • Shpg. 260 lbs.
END MOUNTINGS
  • Rod End Double Swivel Link
  • O.D. 3.06″
  • Width 4″
  • Pin Hole 1-1/2″
  • Base End Male
  • Pin Outside/Inside Width 11″ /8″
  • Pin-Center-To-Rod Pin Center 34.75″
  • Pin Center To Base End 21.5″
  • Pin Diameter2-1/2″
