5.5" x 32" x 2.5" Double Acting Hydraulic Cylinder Fiat-Allis 73076473

5.5″ x 32″ x 2.5″ Double Acting Hydraulic Cylinder Fiat-Allis 73076473

Original price was: $499.95.Current price is: $99.99.

SKU: 904918 Category:

Description

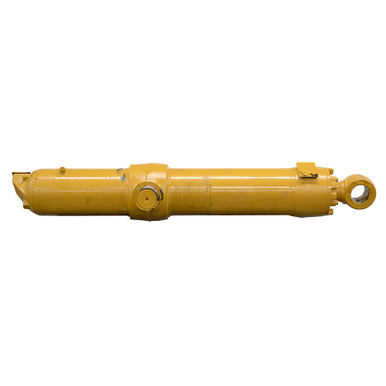

5.5″ x 32″ x 2.5” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. FIAT-ALLIS double acting hydraulic cylinder. Numbers on cylinder 73076473.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 32″
  • Barrel Thickness 0.44″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 28″ (trunnion)
  • Gland Face to Rod Pin Center 3.5″
  • Shpg. 278 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.25″
  • Pin-Center-To-Tang-End 2.28″
  • Pin Hole 2-1/2″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 11.75″ / 7.875″
  • Pin-Center-To-Rod Pin Center 28″
  • Pin Center To Base End 18.5″
  • Pin Dia. 3″
