5.5" x 32.75" x 2.95"(75mm) Double Acting Hydraulic Cylinder S55023R 31L4-01760

5.5″ x 32.75″ x 2.95″(75mm) Double Acting Hydraulic Cylinder S55023R 31L4-01760

Original price was: $579.95.Current price is: $115.99.

SKU: 904558 Category:

Description

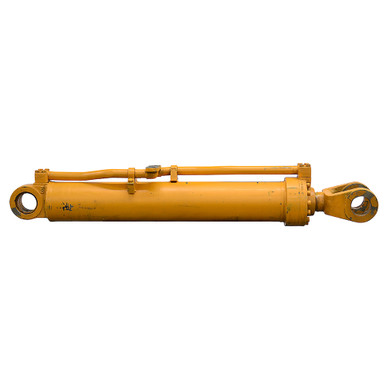

5.5″ x 32.75″ x 2.95″(75mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder S55023R 31L4-01760.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 32.75″
  • Barrel Thickness 0.363″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI max.
  • Rod Dia. 2.95″(75mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 51.375″
  • Gland Face to Rod Pin Center 6.75″
  • Shpg. 299 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 5.99″
  • Inside Width 3.48″
  • Throat Depth 6.47″
  • Pin Hole 2.96″(75mm)
  • Base End Tang
  • Thickness, Max 3.36″
  • Pin-Center-To-Tang-End 2.54″
  • Pin Hole 2.96″(75mm)
