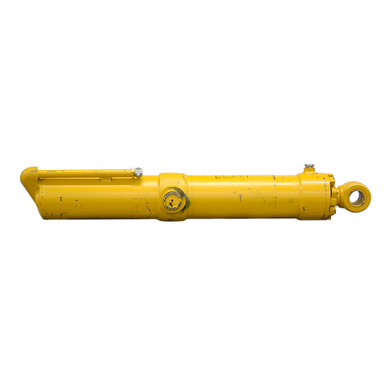

5.5" x 31.344" x 2.5" Double Acting Hydraulic Cylinder 73016539

5.5″ x 31.344″ x 2.5″ Double Acting Hydraulic Cylinder 73016539

Original price was: $449.95.Current price is: $89.99.

SKU: 905469 Category:

Description

5.5″ x 31.344″ x 2.5″ HYDRAULIC CYLINDER
Unused old inventory. Welded, doube acting hydraulic cylinder, model 73016539.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 31.44″
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 2.5″
  • Extend Port JIC 12
  • Retract Port 3/4″ NPT
  • Retracted Length 25″
  • Gland Face to Rod Pin Center 3″
  • Shpg. 206 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.25″
  • Pin-Center-To-Tang-End 2.67″
  • Pin Hole 2″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 9″ / 6.5″
  • Pin-Center-To-Rod Pin Center 25″
  • Pin Center To Base End 20.5″
  • Pin Diamter 2.5″
