Description

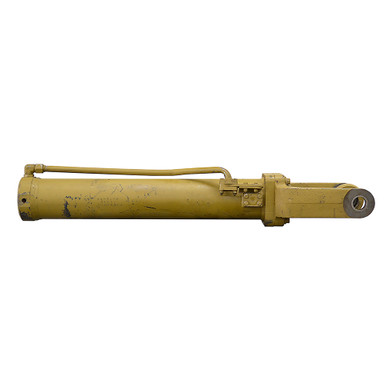

5.5″ x 29″ x 2.5″ DA HYDRAULIC CYLINDER
Unused, old inventory. SMC model FB0922-1 welded cylinder with bolt-on gland cap. Damaged wiper, sold as-is. Base end of cylinder has three 3/4″-10 x 1-1/2″ deep tapped holes and one JIC 4 port. Retracted length measured from end to end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5-1/2″ x 29″
- Barrel Thickness1/2″
- Pressure 3000 PSI max.
- Rod Dia. 2-1/2″
|
- Ports1″ Four-Bolt Flange, Code 61
- Retracted Length 54-3/4″
- Shpg. 410 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang w/ Swivel Eye
- Max Thickness 1-15/16″
- Pin Center to Tang End 2-1/2″
- Pin Hole 2″
|
- Trunnion Female
- Pin Outside Width 14-1/8″
- Pin Inside Width 11-7/8″
- Pin Center to Rod Pin Center Negative 1/2″
- Pin Center to Base End 52-1/2″
- Pin Diameter 2″
|
