Sale!

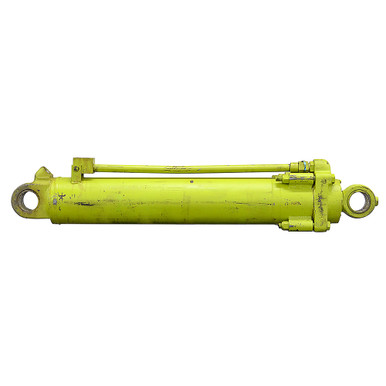

5.5" x 28.75" x 2.5" Double Acting Hydraulic Cylinder 9222603 UH-74-3

5.5″ x 28.75″ x 2.5″ Double Acting Hydraulic Cylinder 9222603 UH-74-3

Original price was: $449.95.Current price is: $89.99.

SKU: 904551 Category:

Description

5.5″ x 28.75″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 9222603 UH-74-3.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″ x 28.75″
  • Barrel Thickness 0.323″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports SAE 12
  • Retracted Length 42.75″
  • Gland Face to Rod Pin Center 2.5″
  • Shpg. 233 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.51″
  • Pin-Center-To-Tang-End 2.17″
  • Pin Hole 2-1/2″
  • Base End Tang
  • Thickness, Max 2.54″
  • Pin-Center-To-Tang-End 2.29″
  • Pin Hole 2-1/2″
