5.47"(140mm) x 50.625"(1285.875mm) x 3.93"(100mm) Double Acting Hydraulic Cylinder Hyundai 31E5-0007

5.47″(140mm) x 50.625″(1285.875mm) x 3.93″(100mm) Double Acting Hydraulic Cylinder Hyundai 31E5-0007

Original price was: $449.95.Current price is: $89.99.

SKU: 902532 Category:

Description

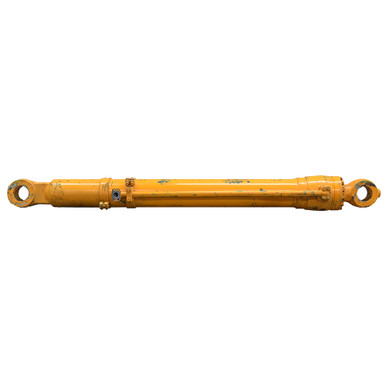

5.47″(140mm) x 50.625″(1285.875mm) x 3.93″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Hyundai numbers on cylinder 31E5-0007.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.47″(140mm) x 50.625″(1285.875mm)
  • Barrel Thickness 0.520″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.93″(100mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 78.75″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 653 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 4.15″
  • Pin-Center-To-Tang-End 3.20″
  • Pin Hole 3.54″(90mm)
  • Base End Tang
  • Thickness, Max 4.14″
  • Pin-Center-To-Tang-End 3.19″
  • Pin Hole 3.54″(90mm)
