Sale!
5.3"(135mm)x 52.94"(1345mm)x 3.54"(90mm) Double Acting Hydraulic Cylinder

5.3″(135mm)x 52.94″(1345mm)x 3.54″(90mm) Double Acting Hydraulic Cylinder

Original price was: $499.95.Current price is: $99.99.

SKU: 904921 Category:

Description

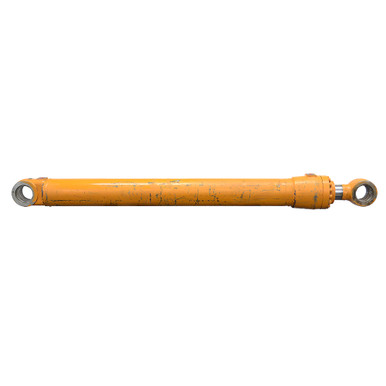

5.3″(135mm) x 52.94″(1345mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.3″(135mm) x 52.94″(1345mm)
  • Barrel Thickness 0.507″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 3.54″(90mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 76″
  • Gland Face to Rod Pin Center 6.625″
  • Shpg. 553 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.32″
  • Pin-Center-To-Tang-End 3.13″
  • Pin Hole 3.54″(90mm)
  • Base End Tang
  • Width 4.72″
  • Pin-Center-To-Tang-End 3.16″
  • Pin Hole 3.54″(90mm)
