Sale!

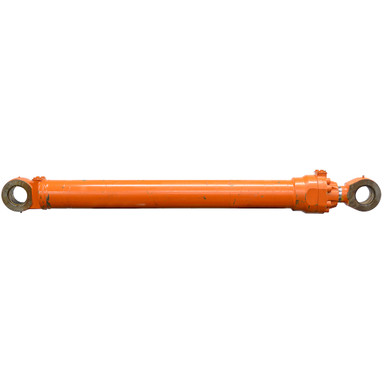

5.31"(135mm) x 52.75"(1340mm) x 3.74"(95mm) Double Acting Hydraulic Cylinder Hitachi 9161895

5.31″(135mm) x 52.75″(1340mm) x 3.74″(95mm) Double Acting Hydraulic Cylinder Hitachi 9161895

Original price was: $599.95.Current price is: $119.99.

SKU: 904853 Category:

Description

5.31″(135mm) x 52.75″(1340mm) x 3.74″(95mm) DA HYD CYL
Unused old inventory. HITACHI double acting hydraulic cylinder. Numbers on cylinder 9161895.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.31″(135mm) x 52.75″(1340mm)
  • Barrel Thickness 0.531″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 3.74″(95mm)
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length75.625″
  • Gland Face to Rod Pin Center 6″
  • Shpg. 578 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.94″
  • Pin-Center-To-Tang-End 3.72″
  • Pin Hole 3.94″(100mm)
  • Base End Tang
  • Width 3.94″
  • Pin-Center-To-Tang-End 3.72″
  • Pin Hole 3.94″(100mm)
