5.124"(130mm) x 20.25"(514mm) x 4.297"(109mm) Double Acting Hydraulic Cylinder 2438U1317F3

5.124″(130mm) x 20.25″(514mm) x 4.297″(109mm) Double Acting Hydraulic Cylinder 2438U1317F3

Original price was: $249.95.Current price is: $62.49.

SKU: 905259 Category:

Description

5.124″(130mm) x 20.25″(514mm) x 4.297″(109mm) HYD CYL

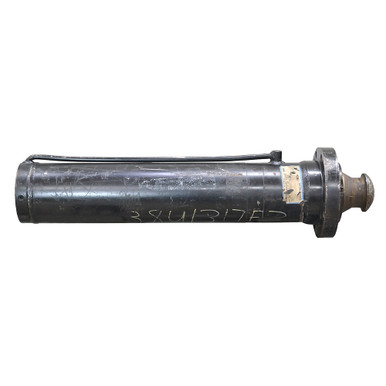

Unused old inventory. Welded, double acting hydraulic cylinder, stamped 2438U1317F3. Base end has a four bolt manifold. Rod end has a eight bolt round flange mount.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.124″(130mm) x 20.25″(514mm)
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 4.297″(109mm)
  • Rod Thickness 4.297″(109mm)
  • Manifold Ports  Three, 0.325″ dia. port holes
  • Manifold Mount Four, M8-1.25 tapped holes on 1.717″ x 2.912″ centers
  • Retracted Length 35.25″
  • Gland Face to Rod Pin Center 4.25″
  • Shpg. 284 lbs.
END MOUNTINGS
  • Rod End Half-Ball
  • Ball Width 3″
  • Ball O.D 3.863″
  • Flange mount 9″ O.D. x 1.395″
  • Bolt holes 0.725″ on 7.875″ bolt circle
  • Base End Manifold
