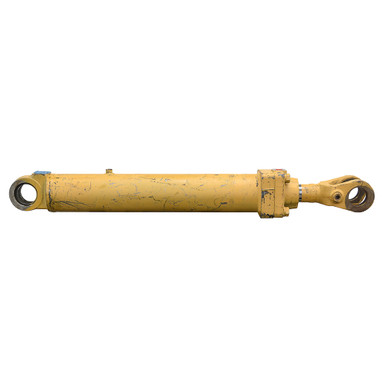

5.12"(130mm) x 27.66"(703mm) x 2.76"(70mm) Double Acting Hydraulic Cylinder

5.12″(130mm) x 27.66″(703mm) x 2.76″(70mm) Double Acting Hydraulic Cylinder

Original price was: $349.95.Current price is: $69.99.

SKU: 904929 Category:

Description

5.12″(130mm) x 27.66″(703mm) x 2.76″(70mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5.12″(130mm) x 27.66″(703mm)
  • Barrel Thickness 0.33″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 2.76″(70mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length49″
  • Gland Face to Rod Pin Center 8.5″
  • Shpg. 248 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 6.33
  • Inside Width 3.51″
  • Throat Depth 5.75″
  • Pin Hole 2.76″(70mm)
  • Base End Tang
  • Width 3.35″
  • Pin-Center-To-Tang-End 2.73″
  • Pin Hole2.95″(75mm)
