5.1"(130mm) x 47.375"(1203.33mm) x 3.34"(85mm) Double Acting Hydraulic Cylinder KRVO146 02178

5.1″(130mm) x 47.375″(1203.33mm) x 3.34″(85mm) Double Acting Hydraulic Cylinder KRVO146 02178

Original price was: $449.95.Current price is: $89.99.

SKU: 904524 Category:

Description

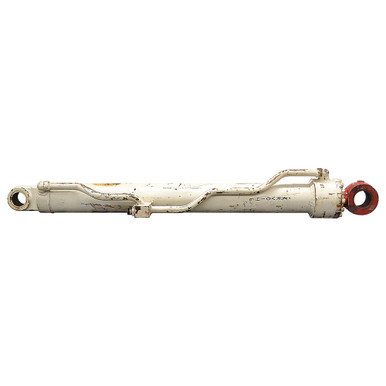

5.1″(130mm) x 47.375″(1203.33mm) x 3.34″(85mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder KRVO146 02178.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.1″(130mm) x 47.375″(1203.33mm)
  • Barrel Thickness 0.361″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.34″(85mm)
  • Ports JIS 60° cone (30° seat) BSPP 1″
  • Retracted Length 67.25″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 418 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.94″
  • Pin-Center-To-Tang-End 3.07″
  • Pin Hole 3.35″(85mm)
  • Base End Tang
  • Thickness, Max 3.93″
  • Pin Hole 2.77″(70mm)
