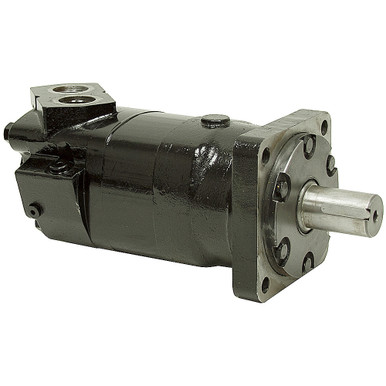

48.96 cu in Dynamic BMK6-800-CC-G2-SF5 Hydraulic Motor

Description

48.96 cu in HYD MOTOR

Brand new, DYNAMIC BMK6 series hydraulic motor. Heavy duty with high flow capacity. ROLORTORC power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with CHARLYNN 6000 motors.

SPECIFICATIONS

• Brand Dynamic
• Model Number 61766
• Build Number BMK6-800-CC-G2-SF5
• Disp. 48.96 cu.in./rev.
• Pressure
  2030 PSI (Cont.)
  2245 PSI (Int.)
• Torque
  13984 in-lb. (Cont.)
  16639 in-lb. (Int.)
• Speed
  186 RPM (Cont.)
  280 RPM (Int.)
• Flow
  39.6 GPM (Cont.)
  59.4 GPM (Int.)
• Rotation Reversible
• Mount 4 bolt SAE C
  6.375 bolt circle, 5″ pilot dia.
• Shaft 1-1/2″ dia. x 3.01″ shaft with 3/8″ key tapped 3/8-16
• Ports SAE 16
• Case Drain SAE 4
• Size 13.11″ x 5.75″ x 5.75″
• Shpg. 75 lbs.
