Description

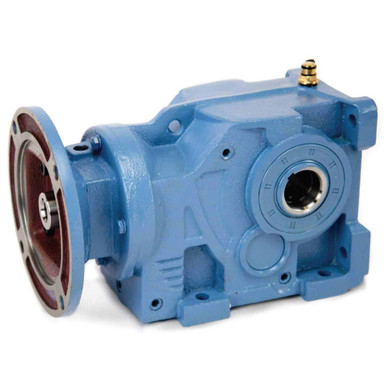

47.08:1 Size 47 2.21 HP Helical Bevel Gear Reducer WWE KHN47-50/1-H-56C
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN47-50/1-H-56C
- Box Size 47
- Gear Stages 3
- Nominal Ratio 50:1
- Actual Ratio 47.08:1
- Output RPM @ 1750 RPM Input 37 RPM
- Input HP 2.21 HP max.
- Output Torque 3400 in.-lbs. max.
- Over-Hung Load 975 lbs. max.
- Motor Mount 56C
- Output Bore 1-3/8″ Hollow Keyed, 1/4″ Keyway
- Horizontal Foot Mount Four 0.43″ holes on 5.12″ x 4.72″ centers
- Vertical Foot Mount Four 0.43″ holes on 5.12″ x 4.72″ centers
- Cross Reference SEW K47
- Size 11.56″ x 6.5″ x 7.45″
- Shpg. 49 lbs.
