Description

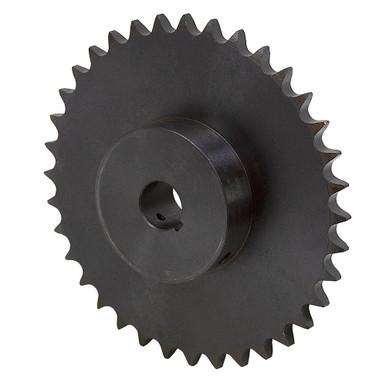

50 PITCH ANSI ROLLER CHAIN SPROCKET
New. ANSI standard 50 pitch roller chain sprocket. Bored to size. One-piece carbon steel forged construction with hardened teeth and black oxide finish. Two set screws. Set screws are located directly over the keyway and 90° from keyway. Keyway is on center line of tooth.
SPECIFICATIONS
- Pitch 50
- Number of Teeth 45
- Bore Size 1-3/16″
- Model Number 50BS40H-1-3/16
- Outside Diameter 9.31″
- Hub Diameter 3-3/4″
- Hub Type B (Hub on one side)
- Length Through Bore 1-1/4″
- Keyway Size 1/4″ wide x 1/8″ depth
- Shpg. 10 lbs.
