Description
43.25:1 SIZE 137 30 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL137-40/1-284/6TC
- Box Size 137
- Stages 3
- Nominal Ratio 40:1
- Actual Ratio 43.25:1

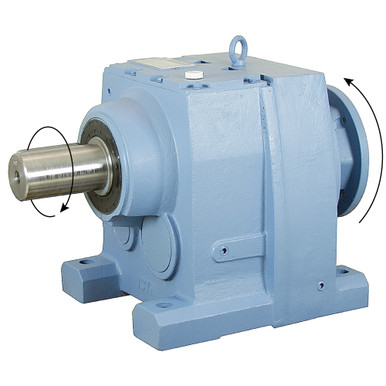

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 40 RPM
- Input Hp 30 Hp Max
- Output Torque 42908 in.-lbs. Max
- Over-Hung Load 5017 lbs. Max
- Service Class I
- Motor Mount 286TC
- Output Shaft 3.625″ dia. x 6.69″ long keyed, 7/8″ wide keyway, shaft end tapped 1″-8
- Base Mount Four 1.3″ holes on 19.29″ x 13.39″ centers
- Shpg. 685 lbs.
