Description

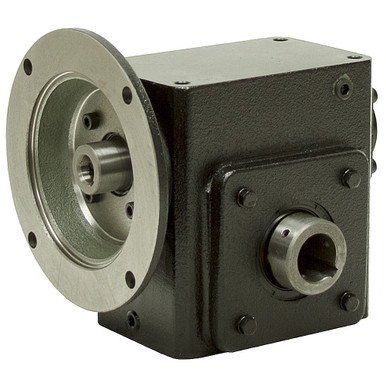

40:1 GEAR REDUCER
Brand new, WORLDWIDE ELECTRIC right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Four tapped mounting holes on top and bottom of case. Shipped filled with oil.
SPECIFICATIONS
- Ratio 40:1
- Input Power 1.45 HP max.
- Input Speed 1725 RPM max.
- Output Speed 44 RPM max.
- Output Torque 1483 in-lb. max.
- Output Centerline Height 2.5″
- Overhung Load 684 lbs.
- Motor Mount 56C
- Input Bore 5/8″ keyed
- Output Type Hollow Bore
- Output Hollow Bore 1-1/4″ dia. x 6-7/16″ keyed thru-length
- Mount 5″ x 2-7/8″ centers
- Size 8-3/4″ x 6-1/2″ x 8-5/8″
- Shpg. 40 lbs.
