Description

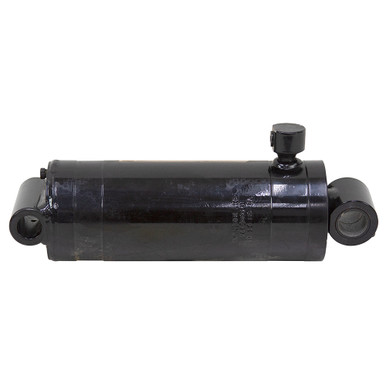

4″ x 9.12″ x 1.75″ SINGLE ACTING HYDRAULIC CYLINDER
New. BURNSIDE AUTOCYL single acting pull only hydraulic cylinder. Cylinder has SAE 6 work port and 1/8″ NPT breather port on base end of cylinder. Numbers on cylinder 26480010.
| SPECIFICATIONS |
- Single Acting
- Bore x Stroke 4″ x 9.12″
- Barrel Thickness 0.25″
- Gland Retainer Threaded in
- Retract Pressure 3000 PSI
- Rod Dia. 1.75″
|
- Ports SAE 6
- Breather Port 1/8″ NPT
- Retracted Length 14.125″
- Gland Face to Rod Pin Center 1.18″
- Shpg. 36 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Tube
- O.D. 2.25″
- Width 2.5″
- Pin Hole 1-1/4″
|
- Base End Cross-Tube
- O.D. 1.75″
- Width 4″
- Pin Hole 1″
|
